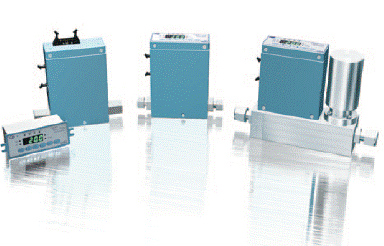

The model MQV_ _ _ _features high-performance digital mass flow controllers that incorporate a thermal mass flow sensor developed by Azbil Corporation, the micro thermal flow sensor in addition to a proportional solenoid valve and advanced actuator control technology. In anticipation of customers’ needs for high speed and wide-range mass flow controllability, these high-performance controllers are designed for general industrial use.

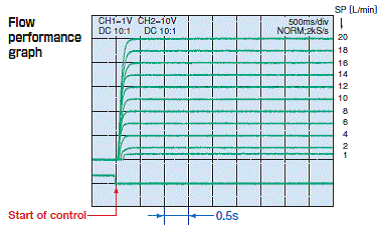

300 ms high-speed controllability

The model MQV_ _ _ _ offers exceptionally fast response from no flow to the stable Set point flow rate, and after set point changes.

Operation at low differential pressure

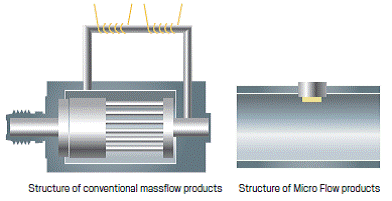

The model MQV_ _ _ _ does not use capillaries that have large pressure loss. So the model MQV_ _ _ _ can control in the low pressure difference.

Superior indication function

Either an integrated display model or a separate display model can be selected.
Thanks to this feature, noise from power wiring has no effect on signals.

PC loader communication functions,

The PC loader allows not only configuration but also logging trends.

Wide temperature range

Model MQV_ _ _ _ controllers can be used over a wide operating temperature range.
(-10 °C to + 60 °C)

AC adapter is also available

You can use the model MQV_ _ _ _ only by plugging the AC adapter into an outlet without troublesome wiring.
