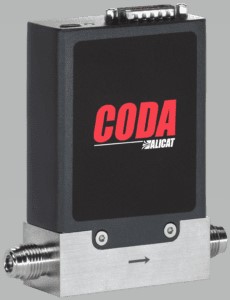

CODA KM-Series Coriolis Mass Flow Meters


CODA KM-Series Coriolis Mass Flow Meters

Inquiry Now

Devices are custom ranged from 40 g/h full scale to 100 kg/h full scale.

Standard specs
  • Full scale ranges: 40 g/h to 100 kg/h

  • Measurement range: 0.2% –100% of full scale

  • Liquid accuracy: ±0.2% of reading or ±0.05% of full scale, whichever is greater

  • Gas accuracy: ±0.5% of reading or ±0.05% of full scale, whichever is greater

  • Repeatability: ±0.05% of reading or ±0.025% of full scale, whichever is greater

  • Response time: <100 ms

  • Operating temperature: –35 to 70°C

  • Proof pressure: 1500 PSIA (103.4 barA); 200 PSIA (13.8 barA) for 40 g/h instruments; optional 4,000 PSIA (275.8 barA) for ≥100 g/h instruments
