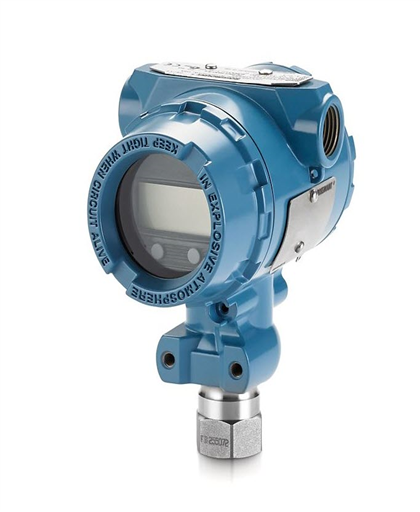

Accuracy:-
±0.10% of calibrated span. Includes combined effects of linearity, hysteresis, and repeatability.
Ambient Temperature:-
Expressed as a total effect per 50 °F (28 °C). Total effect includes zero and span effects.
+/- (0.15% URL + 0.15% of span) from -40 to 185 °F (-40 to 85 °C)
Stability:
±0.10% of upper range limit for 12 months.
Vibration Effect:-
Less than ±0.1% of upper range limit when subjected to vibration of: peak to
peak constant displacement of 4 mm (5–15 Hz) and constant acceleration of
2 g (15–150 Hz) and 1 g (150–2000 Hz).
Power Supply Effect:-
Less than 0.01% of calibrated span per volt.
Mounting Position Effect:-
Zero shift of up to 1.2 inH2O (3 0.3 kPa), which can be calibrated out. No span effect.
RFI Effect:-
Less than ±0.25% of upper range limit from 20–1000 MHz at 30 V/m with
leads in conduit. Less than ±0.25% of upper range limit at 10 V/m with
unshielded twisted pair (no conduit).
General Specifications:-
Tested to IEC 801-3.
Service:-
Liquid, gas, and vapor applications.
Range:-
Range | Minimum Span | URL/Max.span/Sensor Limit |
---|---|---|
1 | 1.5 psi (103 mba) | 30 psi (2,1 bar) |
2 | 7.5 psi (517 mbar) | 150 psi (10,3 bar) |
3 | 40 psi (2,76 bar) | 800 psi (55,2 bar) |
4 | 200 psi (13,8 bar) | 4000 psi (275,8 bar) |
Protocols:-
4–20 mA HART (Output Code S)
Output
Two-wire 4–20 mA, user-selectable for linear or square root output. Digital
process variable superimposed on 4–20 mA signal, available to any host
that conforms to the HART protocol.
Power Supply
External power supply required. Standard transmitter operates on 10.5 to
42.4 Vdc with no load.
Turn-On Time
Performance within specifications less than 2.0 seconds after power is
applied to the transmitter.
1-5 Vdc HART Low Power (Output Code N)
Output
Three wire 1–5 Vdc output, user-selectable for linear or square root output.
Digital process variable superimposed on voltage signal, available to any
host conforming to the HART protocol.
Power Supply
External power supply required. Standard transmitter operates on 9 to 28
Vdc with no load.
Power Consumption
3.0 mA, 27–84 mW
Output Load
100 kΩ or greater
Turn-On Time
Performance within specifications less than 2.0 seconds after power is
applied to the transmitter
Overpressure Limits
Range 1: 120 psig max.
All other ranges: twice the upper range lim
Temperature Limits
Process
Silicone fill sensor: –40 to 250 °F (–40 to 121 °C).
Inert fill sensor: –22 to 250 °F (–30 to 121 °C).
Ambient
–40 to 185 °F (–40 to 85 °C).
–4 to 175 °F (–20 to 80 °C) with LCD display.(1)
Storage
–50 to 230 °F (–46 to 110 °C). –40 to 185 °F (–40 to 85 °C) with LCD display.(1)
Electrical Connection:-
1/2–14 NPT, M20 x 1.5 or G 1/2 female (PF 1/2 female) conduit entry.
Electrical Connection:-
1/2–14 NPT, M20 x 1.5 or G 1/2 female (PF 1/2 female) conduit entry.
Process Connection:-
1/2–14 NPT female, DIN 16288 G 1/2 male, RC 1/2 female (PT 1/2 female),
M20 x1.5 male.
Process Wetted Parts:-
316L stainless steel or Alloy C-276.
Weight:-
Approximately 2.44 lb. (1,11 kg).
