Output

  • 4-20 mA with digital signal based on HART Protocol

  • Low Power, 1-5 V dc with digital signal based on HART Protocol

  • Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range

  • 0-.83 inches H2O to 2000 psig

  • 0-0.1 inches H2O to 0-2000 psid

Accuracy

  • 1: +/-0.10% of span

  • 2-4: +/-0.04% of span

  • 5: +/-0.065% of span

Power

  • 4-20 mA: 10.5-42.4 V dc with no load

  • Low Power: 6-12 V dc with no load

Materials

  • Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum

Fluid

  • Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting

  • Coplanar and Traditional flanges

  • Adapters: Cadmium and Nickel-plated CS, 316 SST

Features

  • Wireless HART® technology is secure and cost-effective and delivers >99% data reliability

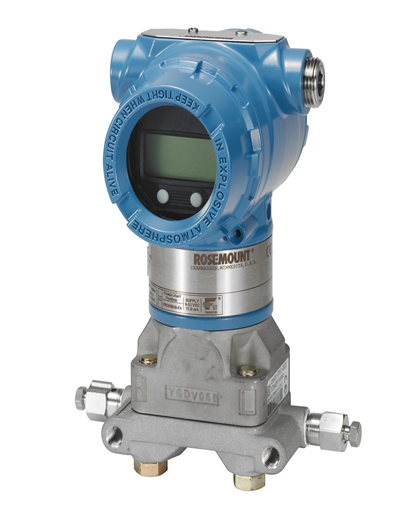

  • Over 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environments

  • Patented Rosemount Coplanar technology allows for direct mounting to multiple measurement applications

  • Complete pressure assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

  • Integrated differential pressure (DP) flowmeters, DP level solutions and integral manifolds improve reliability and performance

  • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

  • Easy installation enables quick instrumentation of measurement points without the cost of wiring
