Micro Motion ®

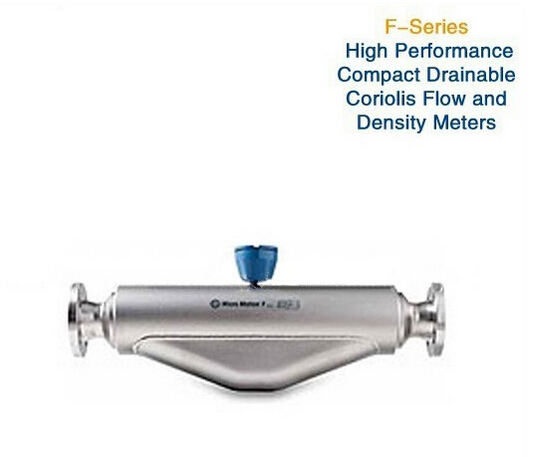

F-Series High-Performance, Compact Drainable Coriolis Flow and Density Meters
Summary:
Process control applications typically require repeatable,reliable and accurate measurements that can deliver the confidence you need toefficiently run your process and resolve your toughest productivity challenges.Whether you’re running a batching, distribution or intra-plant allocationmeasurement, knowing that your meter can continue to perform without issue anddeliver reliable results is key to choosing the right technology for yourapplication.
The Micro Motion F-Series Coriolis flow and density metersare known as the preferred choice for process control applications. Theseaccurate, low frequency, fit-and-forget meters deliver reliable performance –even under the most demanding of process conditions. With communicationsflexibility and diagnostics at its core, the F-Series platform reduces yoursystem integration/set-up costs and incorporates an advanced diagnostics tool,Smart Meter Verification (SMV), that verifies the meter is operating as well asthe day it was installed.
ProductHighlights
Best-in-classmass flow, volume flow and density measurement accuracy in a compact drainabledesign that maximizes process up time
Multiple linesizes provide an ideal platform for batching, distribution, allocation and intra-plantmeasurement applications
Unmatchedmultivariable transmitter technology that delivers the fastest response ratesenabling accurate batch and process measurement
Designflexibility enables operation at high temperature (350°C) and high pressure (345barg) conditions
Smart MeterVerification (SMV) performs an online check of meter health, verifying bothsensor and transmitter integrity at the touch of a button.
CompatibleCoriolis Transmitters
3300 and 3350Frequency-Input Controller
Features & Benefits
Multi-variable flow and density measurement
Best-in-classperformance on liquid mass flow, volume flow, and density measurements in acompact design
Robust sensordesign minimizes down time and process interruption costs
Rugged designminimizing process, mounting, and environmental effects
Bestfit-for-application
Cleanable,self-draining design for process control service
Compact designenables installation flexibility and reduced maintenance costs
Broad range ofI/O offerings including HART, Profibus-DP, FOUNDATION Fieldbus, 4-20 mA andWireless capabilities
Exceptional reliability and safety
Smart MeterVerification delivers complete, online verification of device health andperformance, continuously or on-demand at the press of a button
Globally leadingISO/IEC 17025 calibration facilities offers best in class uncertainty of 0.014%
Specifications
BRIEF SPECIFICATIONS* | |
Mass flow accuracy | ±0.1% to 0.20% of flow rate |
Volume flow accuracy | ±0.15% to 0.28% of flow rate |
Gas flow accuracy | ±0.50% of flow rate |
Density accuracy* | ±0.0005 to 0.002 g/cm3 (±0.5 to 2.0 kg/m3) |
Wetted parts | Stainless Steel 316L or Nickel Alloy C-22 |
Temperature rating | Standard: -150° to 400° F (-100° to 204° C) |
Pressure rating*** | 1450 psi (100 bar) Stainless Steel 316L |
F-SERIES MODEL | NOMINAL LINE SIZE | MAXIMUM FLOW RATE | ||
English Units | Metric Units | English Units | Metric Units | |
F025** | 1/4 to 1/2 inch | 6 to 13 mm | 100 lb/min | 2720 kg/h |
F050** | 1/2 to 1 inch | 13 to 25 mm | 300 lb/min | 8160 kg/h |
F100** | 1 to 2 inch | 25 to 50 mm | 1200 lb/min | 32,650 kg/h |
F200 | 2 to 3 inch | 50 to 75 mm | 3200 lb/min | 87,100 kg/h |
F300 | 3 to 4 inch | 75 to 100 mm | 10,000 lb/min | 272,160 kg/h |
Applications
Micro Motion F-Series Coriolis metersdeliver high performance and superior reliability in a compact, drainable meterdesign ideally suited for a broad range of applications.
Batch Control
Blending
Concentrationand Density Measurements
Filling &Dosing
Gases
Loading andUnloading (Incl. Truck-mounted)
Mass Balance
Multi-meterProduct Transfer Skids
Oil FieldServices Cementing
Process Control
Reactor Charging
