LF-Series Extreme Low-Flow Coriolis and Density
Micro Motion ®

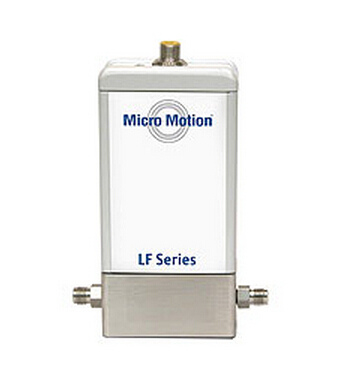

LF-Series Extreme Low-Flow Coriolis and Density Meters
Summary:
Highestprecision from a miniaturized flow meter
Patented opticalsensing system delivers unparalleled sensitivity and stability
Palm-sized formfactor is ideal for tight spaces
Scalable platformthat solves challenges in the most demanding low-flow applications
Three sizes areavailable, with the smallest capable of measuring flow rates down to 1 g/h
High-speed DSPfor accuracy under the toughest conditions
Superiorreliability
No moving partsto wear or replace minimizes maintenance for long term reliability
Ruggedconstruction for durability in the lab or in the field
Micro Motion LF-Series meters are the smallest Coriolismeters available and offer a scalable platform to meet individual flowmeasurement needs. With a footprint the size of a handheld organizer thismeters fits into any tight space for ultra-low, high precision flowmeasurement.
Features &Benefits
Advantages ofCoriolis Measurement
Direct inlinemeasurement of mass flow, density, concentration, and volume flow andtemperature from a single device
Immune to fluid,process, or environmental effects for superb measurement confidence
Highly robust,suitable for installation anywhere with no flow conditioning or straight piperun required
No movinginternal parts results in no maintenance or repair
Specifications
BRIEF SPECIFICATIONS* | |
Mass flow accuracy: | Standard +/-1.0% of rate |
Density accuracy: | +/- 0.005 g/cm3 |
Wetted parts: | 316/316L stainless steel |
Temperature rating: | 32° to 149°F (0° to 65°C) |
Pressure rating: | Standard 500 psi (35 bar) |
LF-SERIES MODEL | MAXIMUM FLOW RATE (LIQUID) | TYPICAL FLOW RATE (GAS) | ||
English Units | Metric Units | English Units | Metric Units | |
LF2M | 0.84 lb/hr | 0.38 kg/hr | 0.227 lb/hr | 0.103 kg/hr |
LF3M | 2.21 lb/hr | 1.0 kg/hr | 0.893 lb/hr | 0.405 kg/hr |
LF4M | 69.54 lb/hr | 27.0 kg/hr | 8.026 lb/hr | 3.64 kg/hr |
* See product data sheet for transmitter specifications and more detailed sensor specifications. |
Applications
Micro Motion LF-Series Coriolis metersare the highest precision miniaturized Coriolis meter to deliver superioraccuracy measurement for extreme low flow applications.
Chemicalcatalyst research
Chemicalinjection
Dosing systems
High pressuregases
Liquid and gaslow flow measurement
Precisioncoatings
Metering pumpcontrol
Metrology
R&Dlaboratory
Vacuum thin filmcoating
