T-Series Straight Tube Full-bore Coriolis Flow
Micro Motion ®

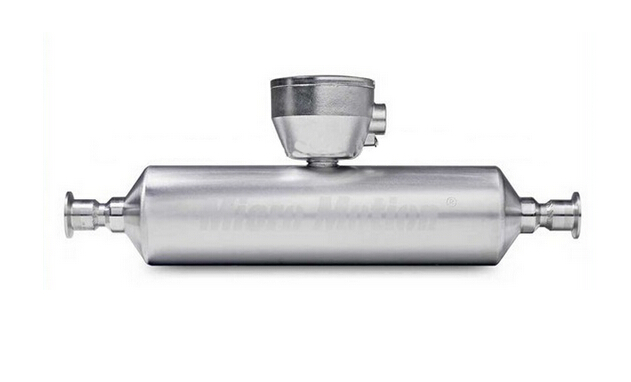

T-Series Straight Tube Full-bore Coriolis Flow and Density Meters
Summary:
Superior flowmeasurement in a single straight tube flow meter
Built-in balancebar provides the best single straight tube mass flow measurement to reducevariability in process control
Comprehensivehygienic application coverage
Easy to CIP andSIP with EHEDG certified, 3-A authorized, ASME BPE design
Diameter matchesstandard process tubing for draining in any orientation
Fast productchange-over with self-draining design and no profile effects
Single flow pathis easy to clean mechanically
Highly-polishedsurface finish for ultra-pure fluids
Superiorreliability
No moving partsto wear or replace minimizes maintenance for long-term reliability
Micro Motion T-Series meters offer superior flow measurementin a single, straight-tube, full-bore meters design. Featuring alltitanium wetted parts for excellent corrosion resistance, the T-Series isself-draining with a flow path that resists plugging and can be pigged.
The T-SeriesCoriolis Flow & Density Meters are compatible with the followingtransmitter:
3300 and 3350Frequency-Input Controller
Features & Benefits
Advantages of Coriolis Measurement
Direct inlinemeasurement of mass flow, density, concentration, and volume flow andtemperature from a single device
Immune to fluid,process, or environmental effects for superb measurement confidence
Highly robust,suitable for installation anywhere with no flow conditioning or straight piperun required
No movinginternal parts results in no maintenance or repair
Specifications
BRIEF SPECIFICATIONS | |
Mass flow accuracy | +/-0.15% of flow rate |
Volume flow accuracy | +/-0.25% of flow rate |
Gas flow accuracy | +/- 0.50% of flow rate |
Density accuracy | +/-0.002 g/cc (+/-2.0 kg/m3) |
Wetted parts | Titanium ASTM Grade 9 |
Temperature rating | -60° to 300º F (-50° to 150º C) |
Pressure rating | 1450 psi (100 bar) |
* Listed specifications may vary with sensor or transmitter model. | |
T-SERIES MODEL | TYPICAL LINE SIZE | MAXIMUM FLOW RATE | ||
English Units | Metric Units | English Units | Metric Units | |
T025 | 1/4 to 1/2 inch | 6 to 13 mm | 25 lb/min | 680 kg/h |
T050 | 1/2 to 3/4 inch | 13 to 19 mm | 140 lb/min | 3,800 kg/h |
T075 | 3/4 to 1 inch | 19 to 25 mm | 500 lb/min | 14,000 kg/h |
T100 | 1 to 1-1/2 inch | 25 to 40 mm | 1,100 lb/min | 30,000 kg/h |
T150 | 1-1/2 to 2 inch | 40 to 50 mm | 3,200 lb/min | 87,000 kg/h |
Applications
Micro Motion T-Series Coriolis meters deliver outstanding performance in a single, straight-tube meter design and ideally suited for hygienic applications.
· Batch Control · Bio-Reactor Feeds · Blending · CIP/SIP Processes · Concentration and Density Measurements · Filling & Dosing · Gases · High Purity Fluids · Mass Balance · Oil Field Services Stimulation Fluids · Process Control · Reactor Charging · Validated Processes |
