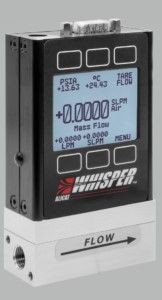

Whisper™ MW–Series Low Pressure Drop Mass Flow Meters

Devices are custom ranged from 0.5 SCCM full scale to 1,000 SLPM full scale.

Full scale ranges: 0.5 SCCM to 1,000 SLPM
Measurement range: 0.01% – 100% of full scale
Accuracy: ±0.75% of reading or ±0.1% of full scale, whichever is greater
Optional high-accuracy: ±0.6% of reading or ±0.1% of full scale, whichever is greater
Repeatability: 0.1% of reading and 0.02% of full scale
Response time: 127 ms
Operating temperature: –10°C to +60°C
Full scale operating pressure: 60 PSIA (4.1 barA)
