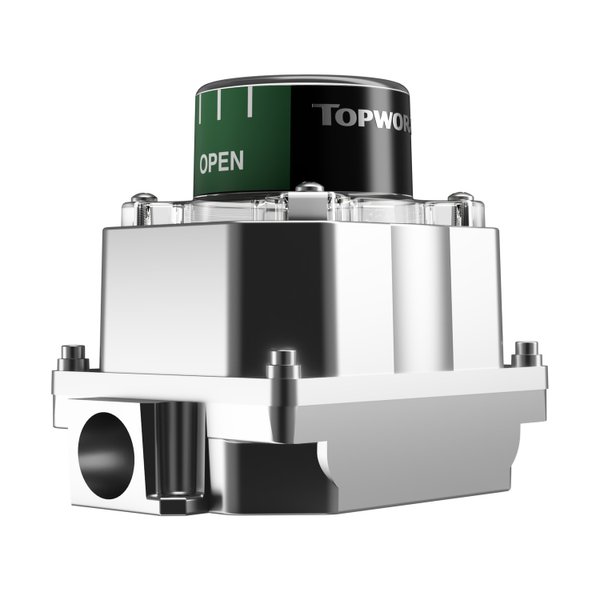

The extemely rugged and robust TopWorx TVH is at its best amongst highly corrosive and heavy washdown environment applications. A stainless steel enclosure provides not only an impact resistant hosuing but a valve position monitor specially engineered to last the distance no matter what you throw at it. Direct mount capability to most quarter turn pneumatic actuators reduces the overall height of actuated valve packages with a compact solution.
| Enclosure | TVH - 316 Stainless Steel base and lid |
| Bus/Sensor | M2 - (2) Mechanical SPDT |
| Area Classification | 0 - Intrinsically safe |
| Visual Display | G - Standard 90° Green OPEN |
| Shaft | N - NAMUR 316 stainless steel |
| Conduit Entries | E - (2) ¾" NPT |
| O Rings | M - Silicone |
| Regional Certification | 0 - No regional certification |
| Pilot | 0 - No pilot device(s) |
| Spool Valves | 0 - No spool valve |
| Valve CV | 0 - No valve Cv |
| Manual Override | 0 - No manual override |
| N Switch | 0 - No N Switch |
