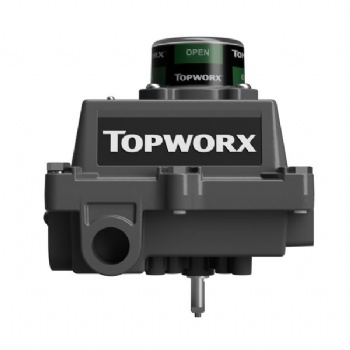

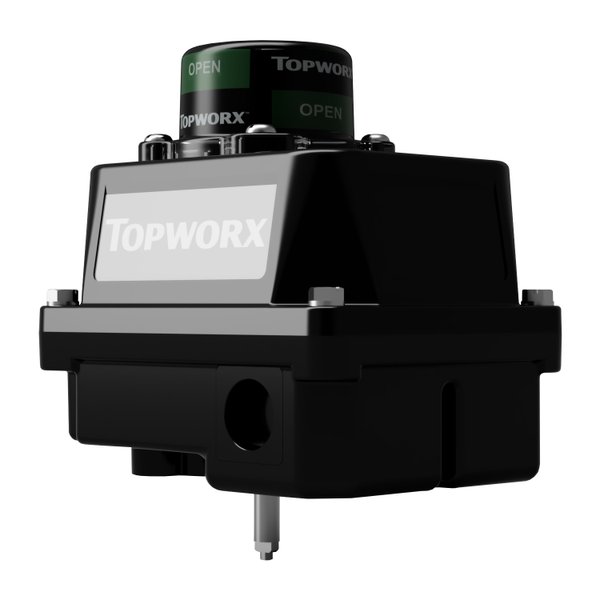

The TopWorx DXR valve position monitor combines all the versatility of the DXR platform into a robust composite resin housing. Providing a corrosion proof solution for some of the harshest environment applications. The D-Series valve controller carry certification approvals such as IECEx, ATEX & UL. Combined with GO Switch sensor technology the DXR delivers a unrivalled market leading monitoring system whether this be for high or low temperatures.
| Enclosure | DXR - Composite Resin |
| Bus/Sensor | M2 - (2) Mechanical SPDT |
| Area Classification | W - No approvals |
| Visual Display | B - 90° Black OPEN |
| Shaft | N - NAMUR 316 stainless steel |
| Conduit Entries | E - (2) ¾" NPT |
| O Rings | S - Silicone |
| Regional Certification | 0 - No regional certification |
| Pilot | 0 - No pilot device(s) |
| Spool Valves | 0 - No spool valve |
| Valve CV | 0 - No valve Cv |
| Manual Override | 0 - No manual override |
| N Switch | 0 - No N Switch |
