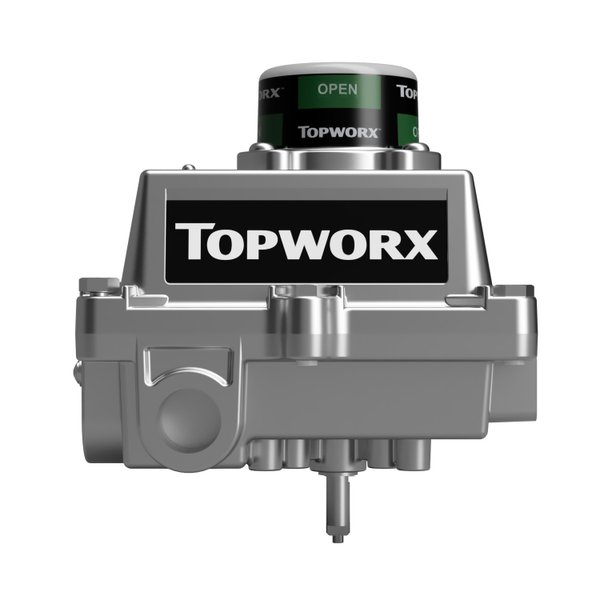

The TopWorx DXS range of valve position monitors are constructed of a 316 stainless steel body housing combining technologies such as bus networking, pilot valve integration and position sensors into a globally certified, explosion proof enclosure capable of being used in the most demanding of environments. The unit can be attached to any actuated valve package assembly with various mounting bracket adaptions.
| Enclosure | DXS - 316 stainless steel |
| Bus/Sensor | M2 - (2) Mechanical SPDT |
| Area Classification | 1 - Explosionproof / Flameproof |
| Visual Display | B - 90° Black OPEN |
| Shaft | N - NAMUR 316 stainless steel |
| Conduit Entries | E - (2) ¾" NPT |
| O Rings | B - Buna-N |
| Regional Certification | 0 - No regional certification |
| Pilot | 0 - No pilot device(s) |
| Spool Valves | 0 - No spool valve |
| Valve CV | 0 - No valve Cv |
| Manual Override | 0 - No manual override |
| N Switch | 0 - No N Switch |
