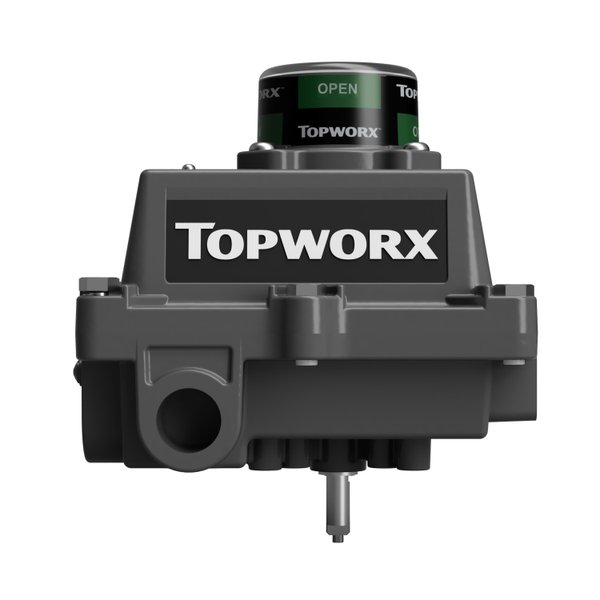

The Topworx range of DXP Switchbox features a robust and rugged design complete with epoxy coated aluminium housing to protect the unit from the most severe and harshest operating conditions. With this durability comes the Topworx DXP's ability to achieve numerous worldwide certifications. The DXP Switchbox is the most popular product amongst the Topworx range of valve monitoring systems and is used across a wide range of industries.
| Enclosure | DXP - Tropicalized aluminium |
| Bus/Sensor | 00 - No Switch |
| Area Classification | 1 - Explosionproof / Flameproof |
| Visual Display | G - Standard 90° Green OPEN |
| Shaft | N - NAMUR 316 stainless steel |
| Conduit Entries | E - (2) ¾" NPT |
| O Rings | B - Buna-N |
| Regional Certification | 0 - No regional certification |
| Pilot | 0 - No pilot device(s) |
| Spool Valves | 0 - No spool valve |
| Valve CV | 0 - No valve Cv |
| Manual Override | 0 - No manual override |
| N Switch | 0 - No N Switch |
