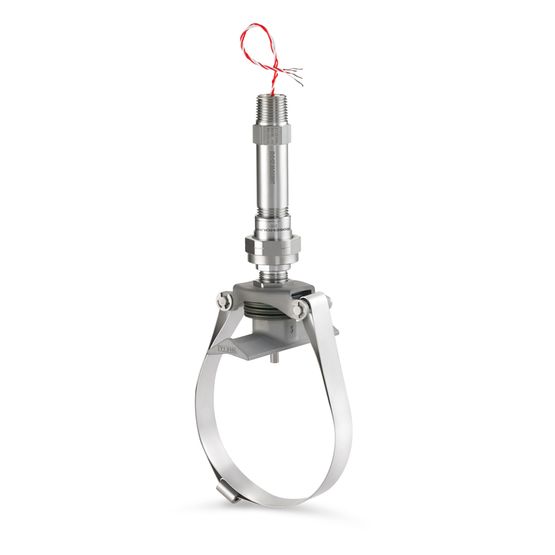

For easy installation anywhere, the Rosemount 85 Pipe Clamp Temperature Sensor offers a selection of clamp styles, sizes, and materials to provide an adaptable surface temperature measurement solution over a wide range of temperatures. This platinum, resistance temperature detector (RTD) sensor comes with a silver or nickel tip for improved response time and is an ideal solution for applications with high velocities, heavy liquids or particulates. The spring-loaded sensor ensures optimal surface contact for improved performance.

• Pipe Clamp Materials

• ASTM 304 SST (1.4301), Duplex F51 (1.4462), Carbon steel (1.0037)

• Lead Wires

• PTFE insulated, silver-coated copper wire

• Insulation Resistance

• 1,000 MΩ minimum insulation resistance when measured at 500 V dc at room temperature

• Calibration Options

• Class A Sensor from -50 to 300 °C (-58 to 572 °F)

• Certifications/Approvals

• Hazardous location, see full specs for complete list of certifications

Specifications

• Pipe Clamp Materials

• ASTM 304 SST (1.4301), Duplex F51 (1.4462), Carbon steel (1.0037)

• Lead Wires

• PTFE insulated, silver-coated copper wire

• Insulation Resistance

• 1,000 MΩ minimum insulation resistance when measured at 500 V dc at room temperature

• Calibration Options

• Class A Sensor from -50 to 300 °C (-58 to 572 °F)

• Certifications/Approvals

• Hazardous location, see full specs for complete list of certifications

Features

• Sensor covers wide range of temperatures -328 to 572 °F (-200 ° to 300 °C) to meet application demands

• Direct mounts to Rosemount 648 Wireless with Rosemount X-well™ Technology for accurate process temperature measurement

• Wide variety of clamp styles, sizes, and materials allows for installation anywhere and provides application flexibility

• Installation requires only two bolts (no welding required) for a straightforward connection

• Platinum RTD temperature sensors designed with silver or nickel tip for improved response time

• Withstands applications with high velocities, heavy liquids or particulates for durability and stability

• Non-intrusive design eliminates need for process penetration of fluids with toxic properties for added safety

• Spring-loaded sensor ensures best surface contact for enhanced performance
